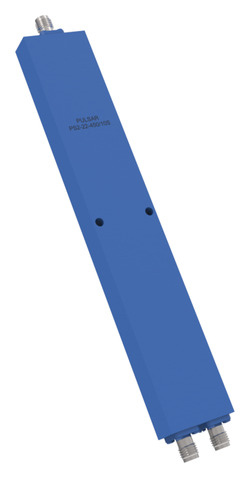

2-Way SMA Power Divider, 0.5-6 GHz
Model: PS2-22-450/10S
View All 2-Way Power Dividers/Combiners: Stripline
Pulsar power divider PS2-22-450/10S covers the range 0.5-6 GHz, while our complete line of power dividers cover frequency ranges up to 70 GHz. Any Pulsar model can be customized to suit your specific performance or package requirements at little to no extra cost. Pulsar is ISO-9001 certified and ITAR registered. RoHS compliance is standard, but non-compliance is available for military and other applications upon request.
- Specifications
- Performance
- Support
Outline 450/10S
5.90" x 1.00" x 0.40"
| Name: | PS2-22-450/10S |
| Frequency Range: | 0.5-6 GHz |
| Insertion Loss: | 0.6 dB max. |
| Isolation: | 18 dB min. |
| Amplitude Balance: | 0.3 dB max. |
| Phase Balance: | 4° max. |
| VSWR: | 1.40:1 max. |
| Input Power: | 30 watts max. |
| Connector Type: | SMA |
- Input power is specified for load VSWR better than 1.20:1.
- BNC, TNC, and F connectors and other frequency ranges also available, contact sales.
- Higher power models available, contact sales.
- Custom performance and package requirements available.
Download S-Parameters (S3P)
Typical Performance
Data taken in a 50 Ohm system at 25° Celsius.
Specifications are subject to change without notice.
