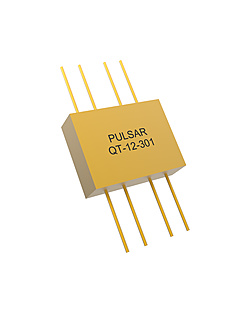

3 dB Flatpack 90° Hybrid Coupler, 20.3-22.4 MHz

Model: QT-12-301


View All 90° Hybrid Couplers/Dividers

Pulsar hybrid QT-12-301 covers the range 20.3-22.4 MHz, while our complete line of hybrids cover frequency ranges up to 40 GHz. Any Pulsar model can be customized to suit your specific performance or package requirements at little to no extra cost. Pulsar is ISO-9001 certified and ITAR registered.

  • Specifications
  • Support

Outline 301
0.38"  x  0.51"  x  0.15"
Name: QT-12-301
Bandwidth: 10%
Center Frequency: 21.35 MHz
Frequency Range: 20.3-22.4 MHz
Insertion Loss: 0.3 dB max.
Isolation: 25 dB min.
Amplitude Balance: 0.7 dB max.
Phase Balance: 2° max.
VSWR: 1.20:1 max.
Package Type: Pin
Power rating 1 watt max. for load VSWR better than 1.20:1.

Custom performance and package requirements available.
