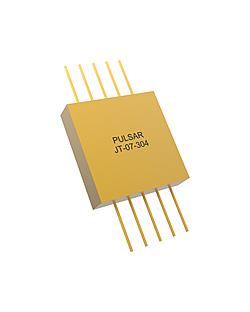

3 Port 3 dB 180° Hybrid Coupler: 40 to 850 MHz - Flatpack
Model: JT-07-304
View All 180° Hybrid Couplers/Dividers
Pulsar hybrid JT-07-304 operates from 40-850 MHz and is part of a broad portfolio of hybrids spanning up to 40 GHz. Our Microwave components play a critical role in modern RF systems, enabling signal distribution, power management, and system integration across a wide range of commercial, industrial, and defense applications. With in-house design and manufacturing capabilities, Pulsar can tailor our products to your specific electrical or mechanical requirements.
Specifications
Outline 304
0.63" x 0.63" x 0.15"
| Name: | JT-07-304 |
| Frequency Range: | 40-850 MHz |
| Insertion Loss: | 1.5 dB max. |
| Isolation A-B: | 20 dB min. |
| Input Power: | 1 watts max. |
| Amplitude Balance: | 0.5 dB max. |
| Phase Balance: | 4° max. |
| VSWR: | 1.50:1 max. |
| Package Type: | Pin |
- Amplitude balance is defined by input Sum or Delta to output A & B.
Custom performance and package requirements available.
