Pulsar Microwave Corporation, established in 1987, is a U.S.-based manufacturer specializing in high-performance RF and microwave passive components spanning DC to 85 GHz. With full in-house design and manufacturing capabilities, we maintain strict control over quality, performance, and lead times, making us a trusted partner for both standard and custom-engineered solutions.

Pulsar is also a leading provider of private labeling and OEM services. Our white-label solutions are engineered to integrate seamlessly into your product line—many customers already rely on our components under other brand names. Whether under your label or ours, you can count on the technical excellence and reliability that defines us.

New Products

New High Frequency Power Divider, 8-60 GHz

Pulsar Model PS2-56-450/15S covers the frequency range of 8-60 GHz with 3.0 dB typ. insertion loss, 10 dB typ. isolation, and VSWR 2.00:1 typ. Amplitude and phase balance are 1.0 dB and +/- 15 degrees respectively. Maximum input power is 10 watts. 1.85 female connectors are utilized in a housing with dimensions 1.04 x 0.6 x 0.38 inches.

Specifications: PS2-56-450/15S
View our complete line of 2-Way Power Dividers/Combiners to 70 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

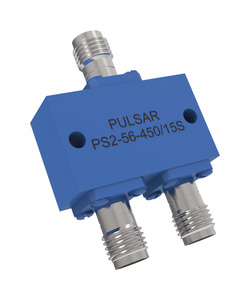

PS2-56-450/15S Power Divider

New Ultra Wideband Bias Tee, 30 kHz – 85 GHz

Pulsar Microwave introduces the first of a new line of ultra wideband products up to 85 GHz. Model BT-55-401, covering the frequency range of 30 kHz – 85 GHz with 2.0 dB insertion loss (typ), 3.0 dB (max), and 2.0:1 VSWR (typ). DC bias capability is 25 volts @ 500 mA with RF/DC isolation of 30 dB. RF input and output ports utilize 1.85 mm connectors and the DC port options include SMA, SMB, or solder pin.

Specifications: BT-55-401D
View our complete line of Wideband RF Bias Tees to 85 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

BT-55-401D Bias Tee

New Wide Band Directional Coupler, 6-60 GHz

New from Pulsar is an ultra wideband coupler, CS20-55-435/4, covering the frequency range of 6-60 GHz with 20 dB +/- 1 dB coupling, 7 dB directivity, and 1.8 dB insertion loss. Outline dimensions are 1.06 X 0.625 X 0.40 inches with 1.85 mm female connectors.

Specifications: CS20-55-435/4
View our complete line of 20 dB Coaxial Directional Couplers to 60 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

CS20-55-435/4 Directional Coupler

New Wide Band Directional Coupler, 6-50 GHz

Pulsar CS20-54-435/4 is a new wideband 6-50 GHz directional coupler with 20 dB +/- 1 dB coupling, 1.6 dB insertion loss and directivity > 10 dB. VSWR is 2.00:1 max and female connectors are 2.4 mm. Outline dimensions are 1.06 X 0.625 X 0.40 inches.

Specifications: CS20-54-435/4
View our complete line of 20 dB Coaxial Directional Couplers to 60 GHz,
or contact sales@pulsarmicrowave.com for additional information and pricing.

CS20-54-435/4 Directional Coupler
