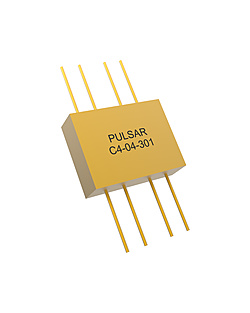

Flatpack Directional Coupler, 0.5-250 MHz

Model: C4-04-301


View All Directional Couplers, 0.01-2000 MHz

Pulsar directional coupler C4-04-301 covers the range 0.5-250 MHz, while our complete line of directional couplers cover frequency ranges up to 60 GHz. Any Pulsar model can be customized to suit your specific performance or package requirements at little to no extra cost. Pulsar is ISO-9001 certified and ITAR registered.

  • Specifications
  • Support

Outline 301
0.38"  x  0.51"  x  0.15"
Name: C4-04-301
Frequency Range: 0.5-250 MHz
Coupling: 20.0 ± 0.5 dB
Coupling Flatness: ±0.25 dB max.
Insertion Loss: 0.6 dB max.
Directivity: 20 dB min.
VSWR: 1.30:1 max.
Input Power: 3 watts max.
Package Type: Pin
Insertion loss does not include coupling loss.
Input power is specified for load VSWR better than 1.20:1.
Dual directional couplers, other frequency ranges, coupling values and higher power models available.

Custom performance and package requirements available.
